Architectural Elevator Design is North America's largest manufacturer of elevator interior handrails for architectural elevator cab applications. 100% Made in the USA.

We offer 14 unique handrail styles in four different metals — Brass, Copper, Bronze, and Stainless — with custom finishes available. The Channel handrail pairs a 1.25″ round tube with a partial-wrap capture standoff — an organic, open-front form that grips the rail from the top and rear while keeping the front face open for a warm, welcoming aesthetic.

Theme
Text Size
1
Specifications

Fixed Dimensions

Handrail Tube 1.25″ round
Standoff Style Partial-wrap capture
Front Face Open
Wall Offset 2.14″
End Details Channel End

The Channel handrail uses a partial-wrap capture — a sculpted organic standoff grips the 1.25″ tube from the top and rear while leaving the front face open for a warm, welcoming feel.

Rail length, standoff quantity, and standoff spacing are configured in Section 3 below.

Custom lengths available.

Overall lengths greater than 8′ ship LTL.

CROSS SECTION

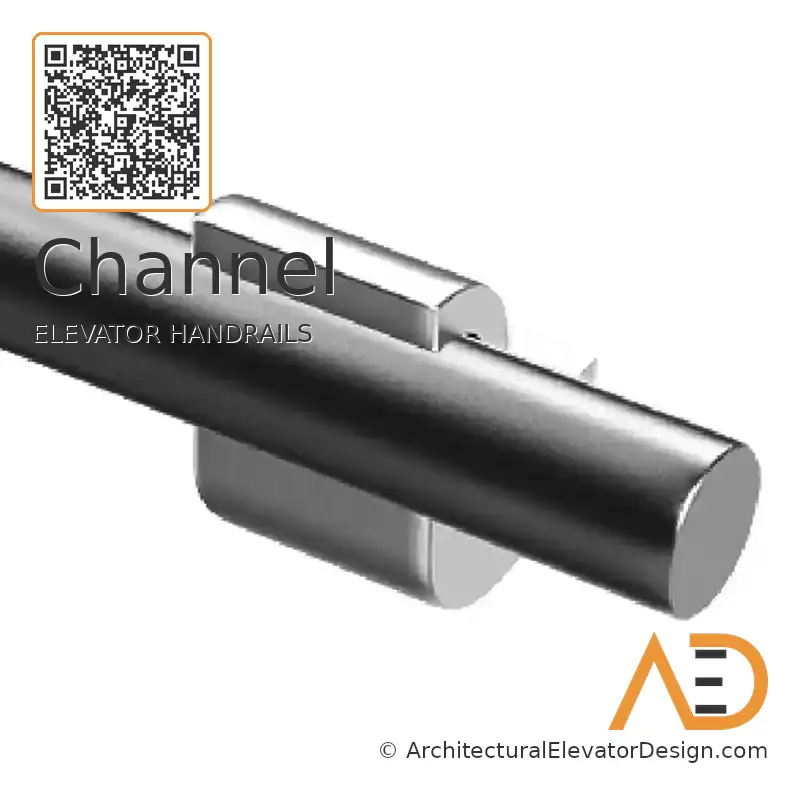

Channel elevator handrail, interior view 1
Channel elevator handrail, interior view 2
Channel series handrail detail
2
Materials & Finishes

Select Material

Select Finish

3
Rail Configuration & Measurements

Rear Wall Handrail

Call for Custom Orders or
Assistance with your Order

Qty

Measurements

REAR WALL CHANNEL HANDRAIL

plan view

Side Wall Handrail

Call for Custom Orders or
Assistance with your Order

Qty

Measurements

SIDE WALL CHANNEL HANDRAIL

plan view

4
End Detail
5
Additional Notes / Specifications
6
Quote & Shipping Information

Quote For

Ship To

Your configuration will be downloaded as a PDF and a copy sent to our team. We'll follow up within 1 business day.
