Architectural Elevator Design is North America's largest manufacturer of elevator interior handrails for architectural elevator cab applications. 100% Made in the USA.

We offer 14 unique handrail styles in four different metals — Brass, Copper, Bronze, and Stainless — with custom finishes available. The Nest handrail pairs a 1.25″ round tube with an organic two-appendage cradle — two curved fingers wrap around the rail and deliver full-circumference support with minimal visual mass. Where engineering meets sculpture.

Theme
Text Size
1
Specifications

Fixed Dimensions

Handrail Tube 1.25″ round
Standoff Body 2.135″ × 1.75″
Cradle Style Two-appendage organic wrap
Cradle Dia 1.75″
End Details Nest End

The Nest handrail uses an organic two-appendage cradle — two curved fingers wrap around the 1.25″ round rail for secure full-circumference support with a sculpted, light visual profile.

Rail length, standoff quantity, and standoff spacing are configured in Section 3 below.

Custom lengths available.

Overall lengths greater than 8′ ship LTL.

CROSS SECTION

Nest elevator handrail, interior view 1

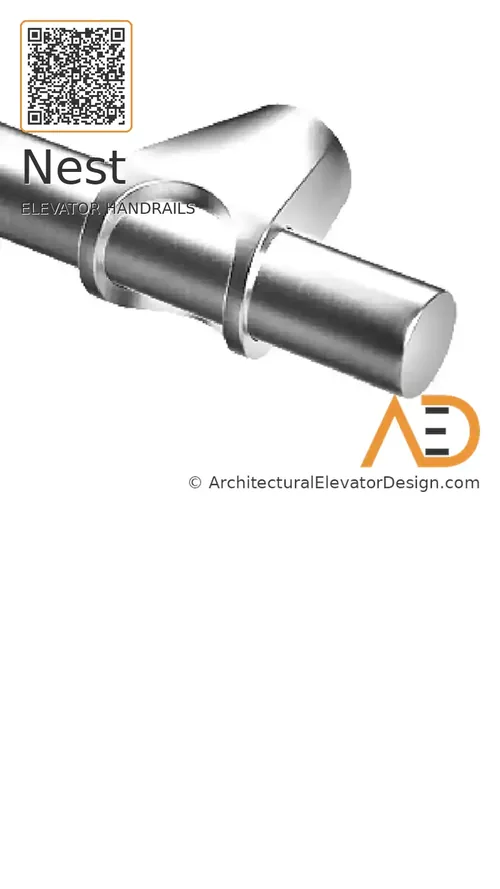

Nest elevator handrail, interior view 2
Nest series handrail detail
2
Materials & Finishes

Select Material

Select Finish

3
Rail Configuration & Measurements

Rear Wall Handrail

Call for Custom Orders or
Assistance with your Order

Qty

Measurements

REAR WALL NEST HANDRAIL

plan view

Nest handrail plan view

Side Wall Handrail

Call for Custom Orders or
Assistance with your Order

Qty

Measurements

SIDE WALL NEST HANDRAIL

plan view

Nest handrail plan view
4

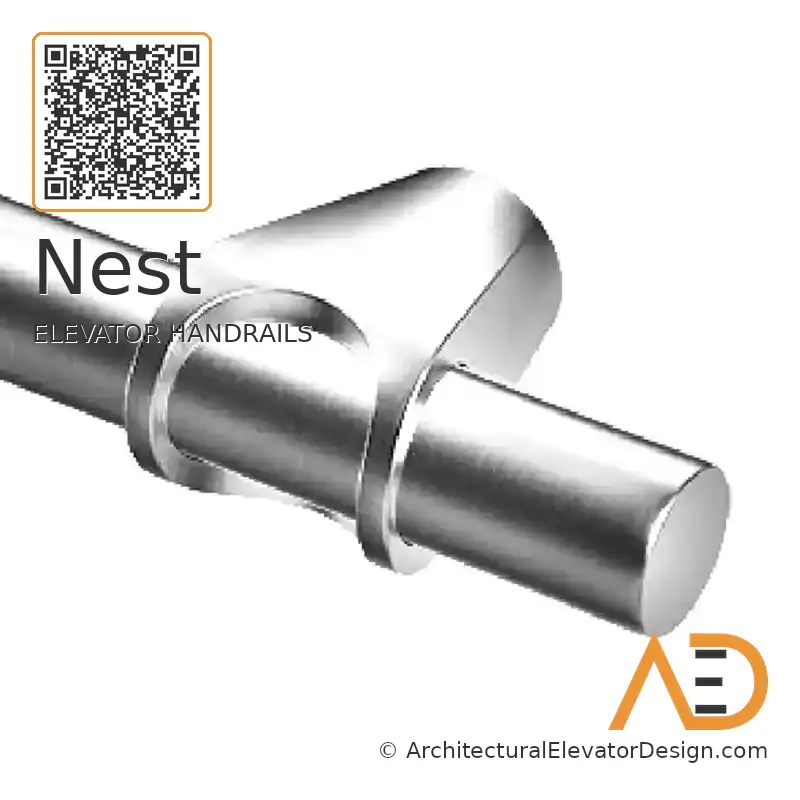

End Detail
5
Additional Notes / Specifications
6
Quote & Shipping Information

Quote For

Ship To

Your configuration will be downloaded as a PDF and a copy sent to our team. We'll follow up within 1 business day.
