TRUSS
HANDRAIL

order form

ArchitecturalElevatorDesign.com

Architectural Elevator Design is North America's largest manufacturer of elevator interior handrails for architectural elevator cab applications. 100% Made in the USA.

We offer 14 unique handrail styles in four different metals — Brass, Copper, Bronze, and Stainless — with custom finishes available. The Truss handrail pairs a 1.25″ square tube with a partial-capture rectangular standoff — geometric presence without visual heaviness. Two small access notches on the face balance the enclosed profile with a lightened aesthetic.

Theme
Text Size
1
Specifications

Fixed Dimensions

Handrail Tube 1.25″ square
Standoff Body 2.89″ × 1.50″
Capture Style Partial wrap w/ access notches
Face Coverage ~50% front face
End Details Truss End

The Truss handrail uses a partial-capture rectangular standoff — the 1.25″ square rail passes through a machined pocket with two small access notches on the face that lighten the profile while keeping geometric presence.

Rail length, standoff quantity, and standoff spacing are configured in Section 3 below.

Custom lengths available.

Overall lengths greater than 8′ ship LTL.

CROSS SECTION

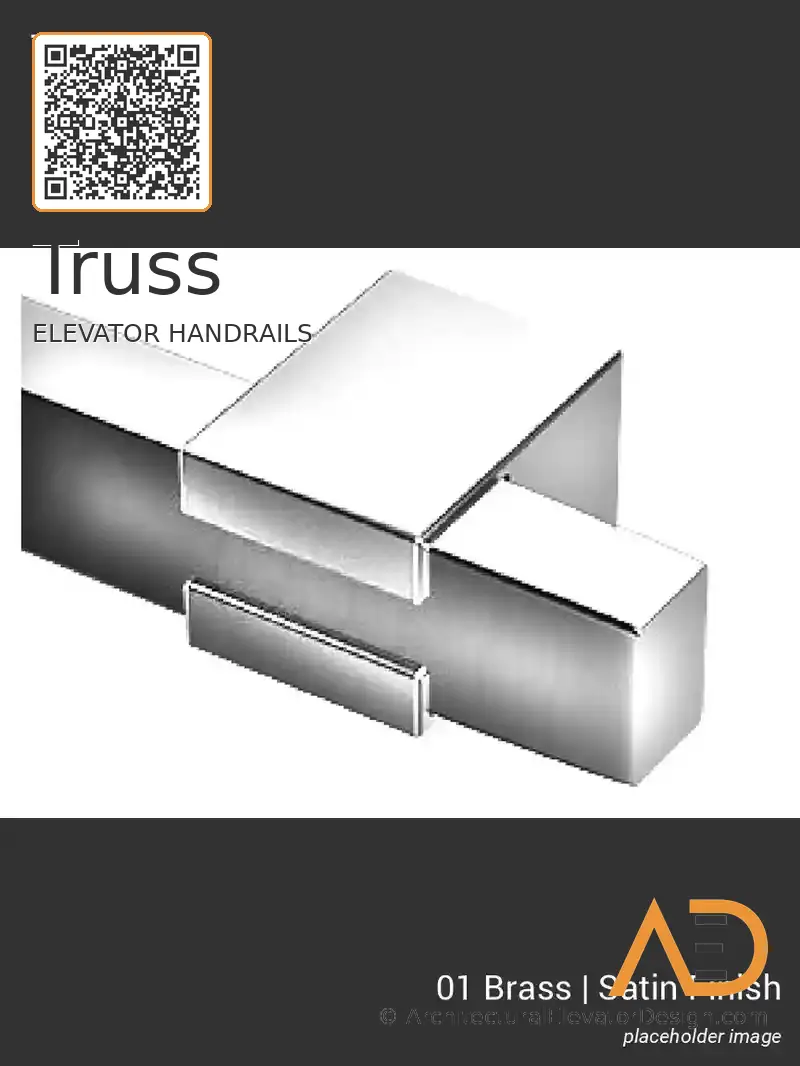

Truss elevator handrail, interior view 1

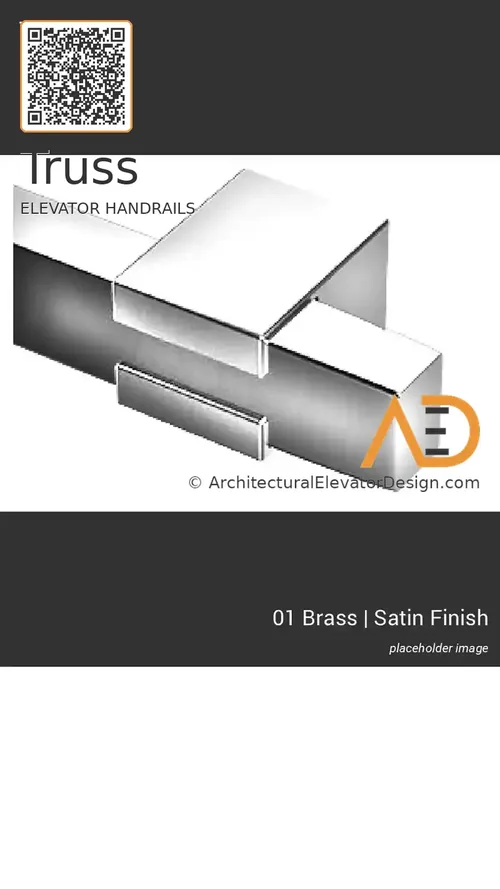

Truss elevator handrail, interior view 2
